Why Choose Our Nitrogen Gas Plant?
Our Nitrogen Gas Plants utilize PSA (Pressure Swing Adsorption) technology to deliver high-purity nitrogen for applications such as food packaging, electronics, pharmaceuticals, and metal processing. Our commercial-purity Nitrogen Gas Plant, based on PSA (Pressure Swing Adsorption) technology, operates using a twin-tower system filled with high-grade imported Molecular Sieves (CMS).
Reliable performance, energy-efficient operation, and easy integration into existing setups make our nitrogen plants the preferred choice across industries.
Nitrogen Plant Key Features:
- Purity levels up to 99.999%
- Low operating cost and minimal maintenance
- Customizable capacity options
- Compact, skid-mounted designs available

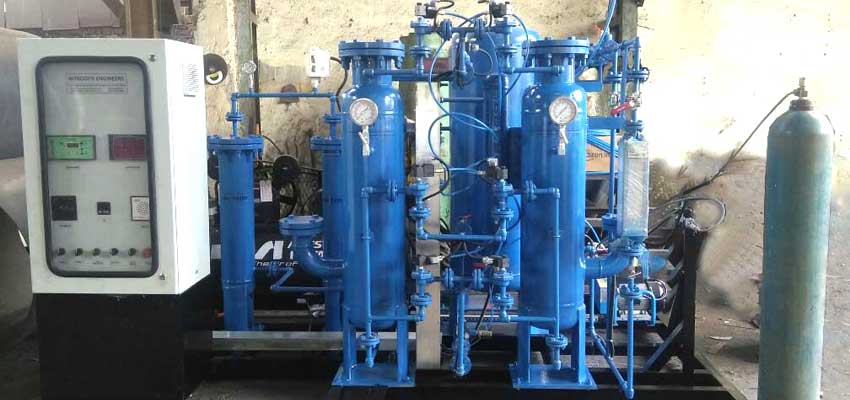

COMMERCIAL PURITY PSA NITROGEN PLANT
| MODEL NAME | NE-CN |
| Flow Rate | 1-1000 Nm³ / hr |
| Nitrogen | 98-99.5% |
| Oxygen | Balance |
| Dew Point | (-)40°C to (-)80°C |

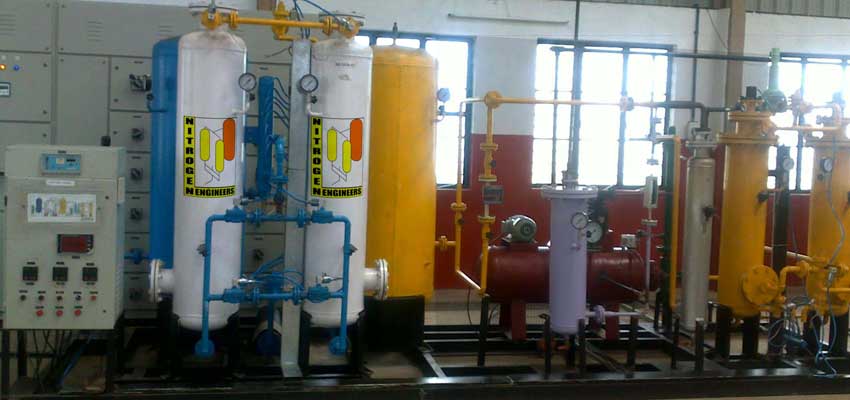

ULTRA HIGHLY PURE NITROGEN PLANT
This model is well suited for the sintering or metallurgical process where even the small amount of the oxygen is unacceptable .In compliance to such requirement , our PD based nitrogen plant gives the oxygen as < 3 ppm and hydrogen about> 0.5%
| MODEL NAME | NE-UN |
| Flow Rate | 1-1000NM³/ hr |
| Nitrogen | ~100% |
| Oxygen | <3 PPM |
| Dew Point | (-)40°C to (-)80°C |

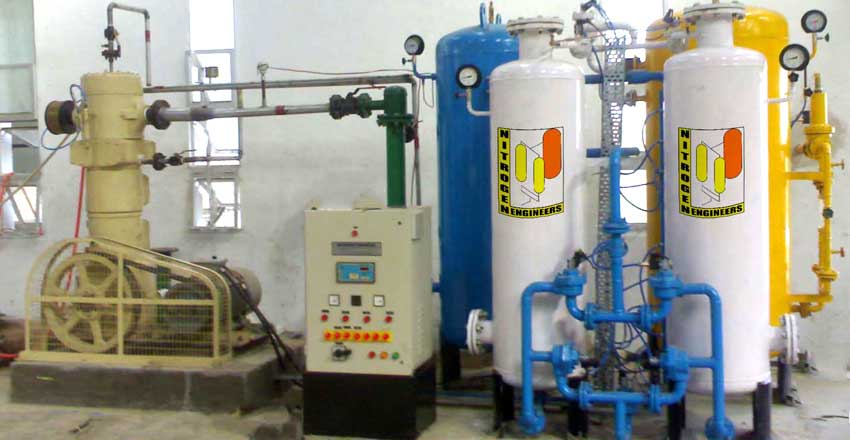

HYDROGEN FREE PURE NITROGEN PLANT
Our hydrogen free pure nitrogen plant can give up purity of Nitrogen above 99.5% upto the 99.999%. This also works on the same principal as the commercial nitrogen plant but the special grade of CMS helps to achieve this purity.Such plants are basically used in the chemical industry.
| MODEL NAME | NE-SN |
| Flow Rate | 1-1000 NM³/ hr |
| Nitrogen | 99.6% - 99.999% |
| Oxygen | Balance |
| Dew Point | (-)40°C to (-)80°C |
ULTRA HIGH PURE NITROGEN PLANT (WITHOUT HYDROGEN)
In various Industries like Electronic, Synthetic, Hi-tech and synthetic fibre where even the very small amount of hydrogen is unacceptable for the process.So, our NE-SHN model of nitrogen generator which uses the Cu-deoxo catalyst, provide the almost hydrogen free and oxygen free nitrogen gas.
| MODEL NAME | NE-SN |
| Flow Rate | 1-1000 NM³/ hr |
| Nitrogen | 99.999% - 99.999% |
| Oxygen | Balance |
| Dew Point | (-)40°C to (-)80°C |
MEMBRANCE BASED NITROGEN PLANT
The membrance based nitrogen plant uses the nitrogen separation membrance for the separation of the pure nitrogen from the air.The Nitrogen separation Membrane is a cylindrical bundle of hollow fiber fine tubules made from polymer material. Each bundle contains several million fibres. The membranes act like a filter with no moving parts and continuously generate nitrogen at selected flow rate and purity
When the compressed air is fed through the one end of the membrance , the slow permeating nitrogen gas is separated from the fast permeating fluids like oxygen, hydrogen and water vapour,which in turn is either stored for use at product use or for further processing The nitrogen membrance used by us is quite reliable as it has no moving parts, it is free from vibration, shocks and chemically resistant to grease, oil etc.Apart from this it can operate between the temperature range -40 to +60 °C.
| MODEL NAME | NE-MN |
| Flow Rate | 1-1000 NM³ / hr |
| Nitrogen | 98% - 99.99% |
| Oxygen | Balance |
| Dew Point | (-)40°C to (-)80°C |
